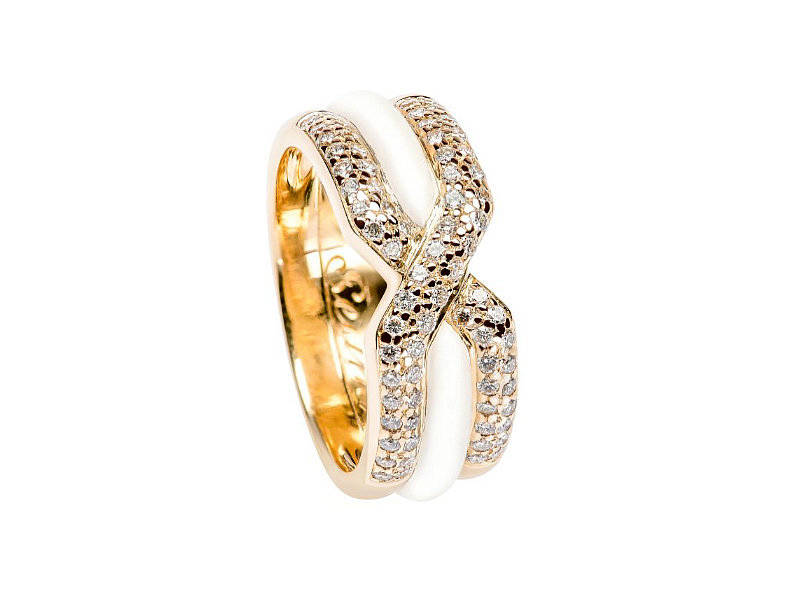

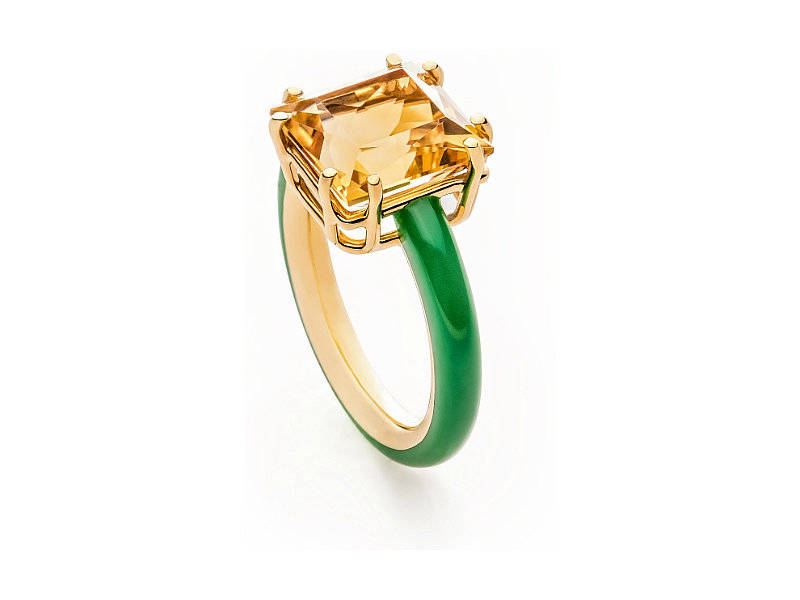

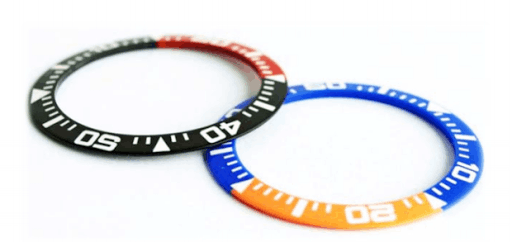

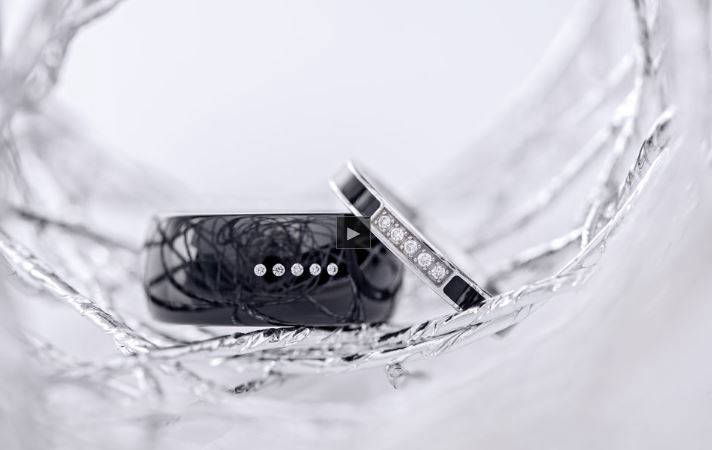

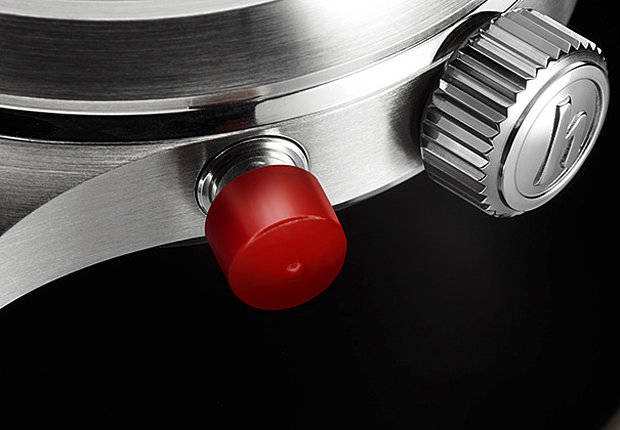

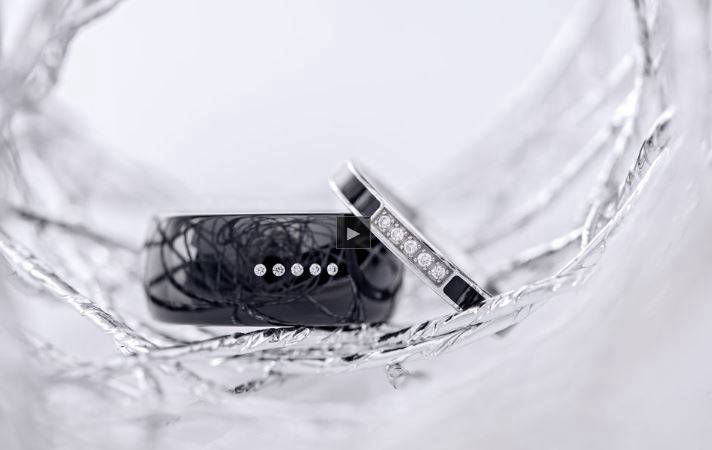

This hybrid ceramic design material is a combination of 60% microfine ceramic and modern 3D polymers. This combination makes HyCeram® the ideal material for fine watches, jewellery and writing instruments, as well as having uses in the medtech and automotive industries. Considering its design features, HyCeram® impresses with its color intensity and color stability, a pleasant feel and a surface hardness of 410 N/mm²
With HyCeram®, invicon combines the advantages of 60% microfine ceramic and modern 3D cross-linked polymers, the result being a hybrid ceramic/polymer compound with an intense and high-quality appearance and which can be processed both in the smaller art workshop as well as on larger mechanical and industrial scales.
hardness 410 N/mm²

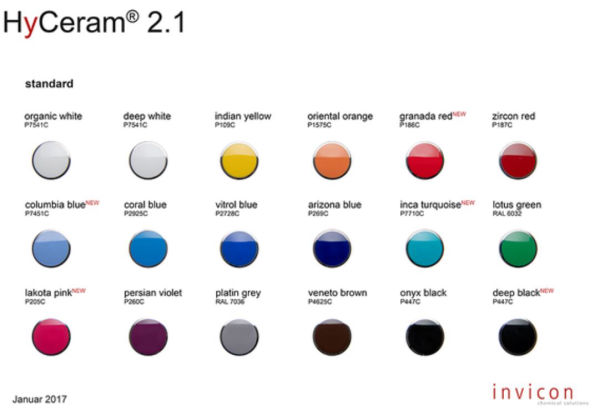

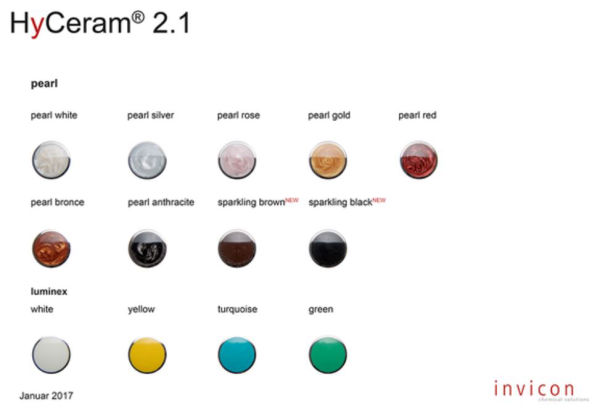

colour variety (Pantone, RAL)
UV-stable and high gloss polishing
temperature resistant up to 200 °C
additional editable (drill, laser, engrave, galvanize)
First Stage Manufacture
Milling (accuracy to: 0.02 mm)
Injection moulding (accuracy to: 0.05 mm)
Second Stage Processing
Come talk to us to find out how using the top quality color materials will not only add value to your designs but also safeguard our customer's well being.
Designed for sophisticated jewellery manufacture, LuxArt® has a 35% ceramic content and organic matrix, luxurious color qualities and a surface hardness of 210 N/mm². Used directly from the cartridge and hardened using efficient blue-light curing; color-intensive, opaque or semitransparent objects can be quickly and easily manufactured. Suitable for use in artist´s workshops, in factories and industrial work processes.
With 35% ceramic content and organic matrix, LuxArt® combines the processing benefits of Luxon® with more hardness and abrasion resistance. Its composition makes LuxArt® even better suited for creative designs with opaque surfaces. The design material is blue light curing and has a surface hardness of 210 N / mm².

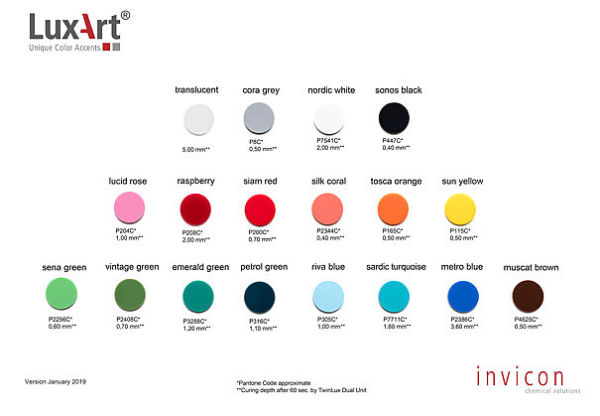

Expressive, attractive colour items can be achieved
Distinctive surface hardness of 210 N/mm²
Particularly efficient cartridge application
Material flows nicely thanks to thixotropic materials
Quick and systematic light curing
Less colour and UV-resistant than HyCeram
Can be polished brightly or to a high gloss
Very glossy surfaces are also possible without polishing.
(Curing in the CeraLux light curing unit with nitrogen)
Durable in galvanising baths
Kingsway Legend is proud to be the only and appointed partner to distribute Invicon colour solutions for out South East Asian customers.
We have been serving our South East Asia customers for decades and we can provide on-site training and get your production up and running within days. Our consultants will be glad to share their experience with you.
Create striking color accents

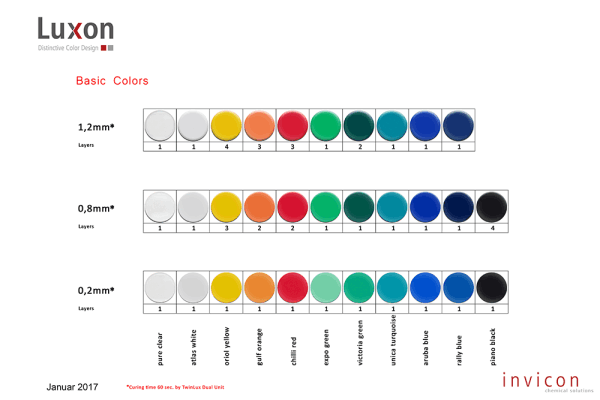

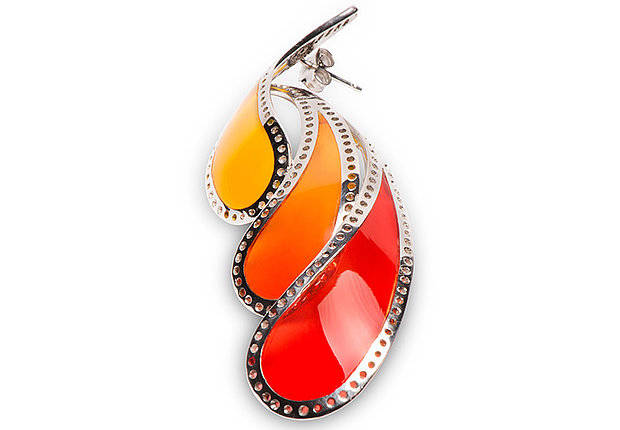

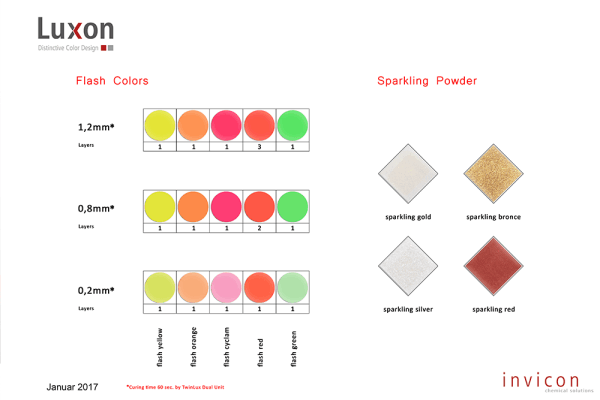

Create dramatic and distinctive color accents on watches, items of jewellery or accessories with Luxon. With its 10 stunning designer colors and 5 eye-popping
neon colors, you have the freedom to produce your own individual color design.
All Luxon colors can be blended with each other. The addition of Luxon pure clear
or atlas white produces individual transparency or pastel effects.
We can create them for you based on color samples or Pantone/RAL color codes.
The design material Luxon® is versatile. Color intensity can be controlled by varying the different layer thicknesses of the standard colors. We also produce custom Luxon® colors to match specific Pantone or RAL codes.
Curing Luxon® depends on the color and thickness of the material. Depending on the desired effect requires one or more layers of material and corresponding exposures to the blue light.
1 .Sandblast the metal surface including side walls
2. Ultrasonic cleaning
3. Application of Luxon® Link
4. Application of HyCeram® Bond
5. Light curing with UV light
6. roll off the inhibited layer
7. Application of Luxon® on jewelery blank (ATTENTION: please note the different layer thicknesses)
8. Light curing for 60 sec.
9. Wipe off the smear layer
Our vision is to provide our customers the most innovative machinery with manufacturing techniques and processes with cutting edge technologies proven from around the world with our local knowledge for the Great China Market and Southeast Asia.
Hong Kong, China-based Kingsway Jewelry Supplies Co Ltd serves as a distributor of alloys and equipment for a number of major brands in Asia. Gilbert Kwok, managing director of the company, shares with JNA the qualities that make Kingsway an ideal partner for jewellery-manufacturing equipment and materials in the region.
We have been a major supplier of casting and melting machines in Asia for more than three decades.
We keep a close eye on the latest industry developments, from electronics to modern engineering technology. By doing so, we are able to identify the technologies, which we believe would better serve the needs of the jewellery industry.
Kingsway mission statement is to accelerate the technology advancement, efficiency and scalability of the jewelry industry in Asia by offering best softare/hardare and international experience.
We excel not only in China but also have experience throughout Asia.
Kingsway is only a engineering company wants to link its decades of trade experience, knowledge network and local Asian knowledge to serve our customers with better, more efficient and new processes of tomorrow.
We never counterfeit or copy our supplier products or customer designs to make quick money.
In the jewelry world, Kingsway is the firm that you can trust.
