NS CNC has raised the bar for jewelers around the world. Coming from humble beginnings, this innovative, industry-leading manufacturing firm understands the necessity behind every new feature and every new machine we make.
From the start, NS CNC’s founder – a talented artist with an extensive engineering background – needed to find new and better ways to craft his works of art. Always wanting to provide the best quality above all else, it became quickly apparent that the entire process of crafting jewelry needed to be rethought. In the 90s, making high quality, custom jewelry meant careful, tedious hand carving.
But as new computer technology developed and the possibilities for new jewelry designs exploded, innovative approaches had to be sought to fulfill an artist’s vision.

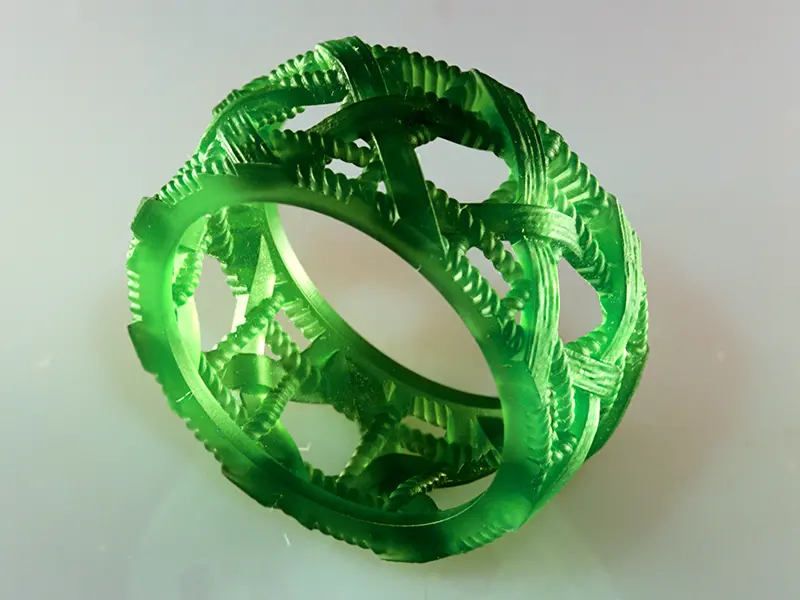

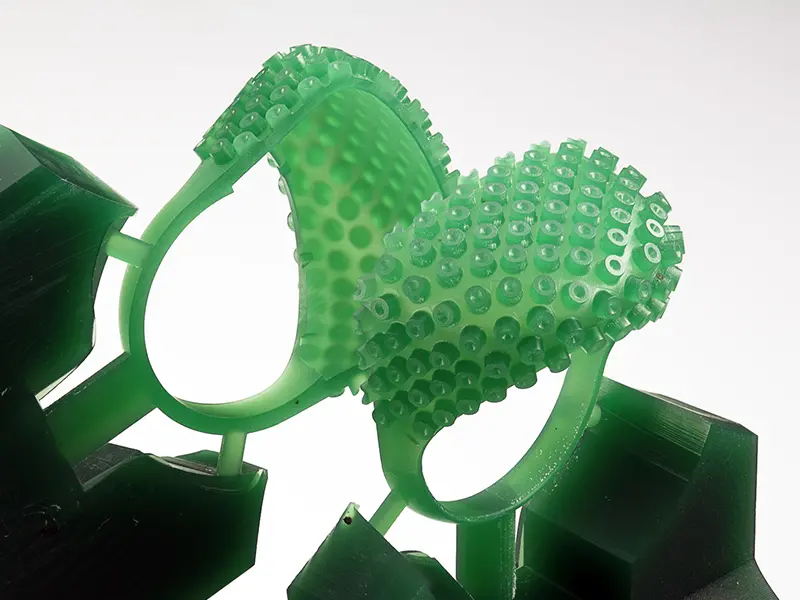

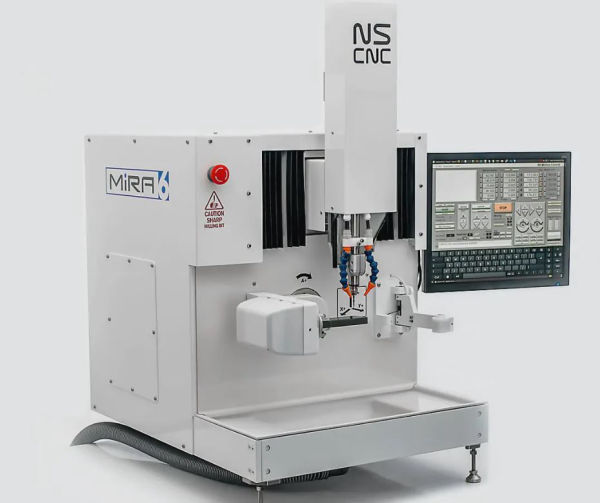

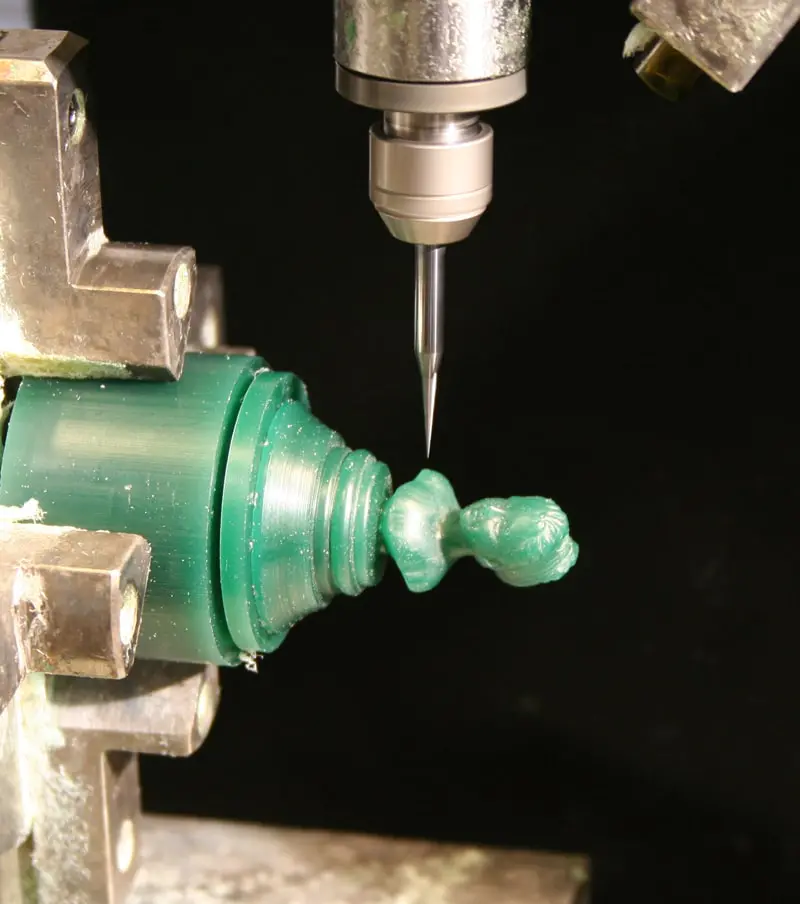

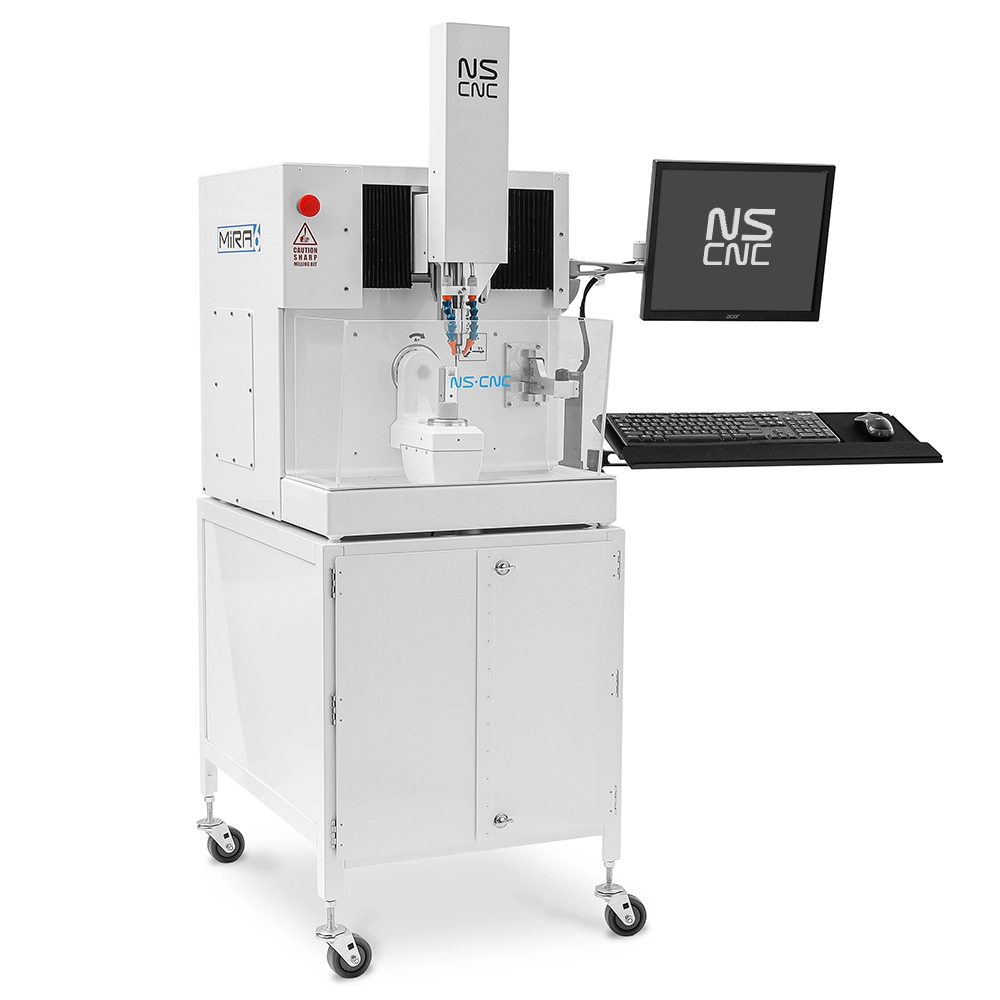

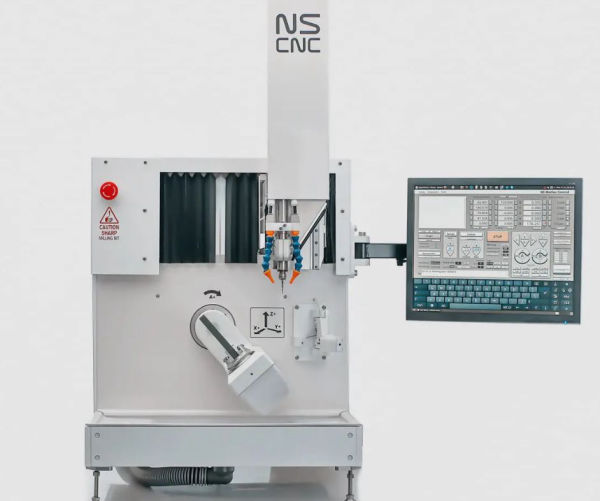

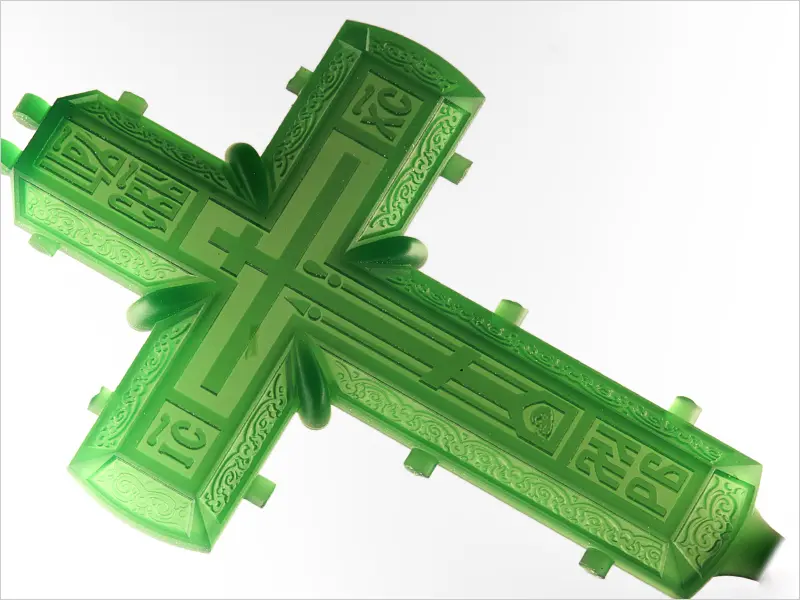

Built off of years of experience perfecting 5-axis milling technology, this lean system combines some of the best technology NS CNC has to offer into one compact package. The Mira-6 was designed to meet the needs of the jewelry industry, so it has to be both easy to use and efficient. To accomplish this, it incorporates our newest control system and our “Smart Rotary Head” technology. NS CNC prides itself on attention to detail, and the Mira-6 is a natural extension of that pride. Watch as this masterpiece of machinery quickly and carefully carves out even the most ornate designs. Then, cast a piece from this mill, and find out that all that needs to be done is the polishing.
Model : NS CNC Mira – 6
Machine Type : 5-Axis Desktop simultaneous CNC Mill
Frame and Stages Material : Aircraft Aluminum Alloy
Linear Axis : X Y Z
Rotary Axis : A B
Machine Codes : Universal G & M Codes
Material Stock : Wax, Soft Plastic, Wood

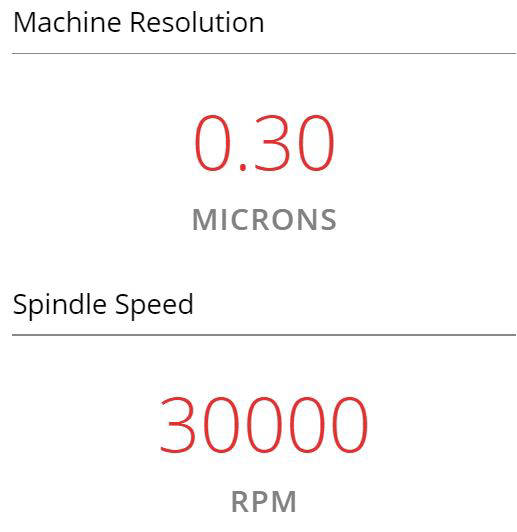

Position : 0.00001″ (0.0003 mm)
Repeatability : 0.0002″ (0.005 mm)
Rotary A Resolution : 0.10 Arc-Sec
Rotary B Resolution : 0.10 Arc-Sec
Spindle Accuracy : 0.00004″ (0.001 mm)
Mechanical Date
Linear Motion : High precision LM Guide
Max Feed Rate : 118 inch/min (3000 mm/min)
Max Rotary B Speed : 300 Deg/Sec
Max Rotary A Speed : 300 Deg/Sec
A Turnable Diameter : 6″ (150 mm)
B Turnable Diameter : 4″ (100 mm)
Backlash : Zero backlash
X Axis : 4.0 inches (105 mm)
Y Axis : 8.5 inches (216 mm)
Z Axis : 5.0 inches (127 mm)
Rotary A : 360 Deg Continuous
Rotary B : 360 Deg Continuous
NS CNC MIRA IS NOT JUST A MACHINE
it is a complete system that can quickly make a model of jewelry from the most popular 3D-file formats. The ability to operate in 5 different axes enables the user to create complex models not found in previous machines. It is designed for jewelers who do not have special education in CNC machines and for those who do not have the time to calibrate and configure complicated settings in the machine.
